Power in the Palm of Your Hand

NOCQUA 20Ah Pro Power Kit keeps you powered up and ready for any outdoor or marine adventure! Each ultra-lightweight kit comes complete with everything you need to connect your devices and includes universal pigtail leads, a durable, silicone-sealed case, and a wall outlet charger for maximum versatility. Whether you’re hiking, kayaking, or deep-sea fishing, NOCQUA adventure gear provides
long-lasting power on the go.

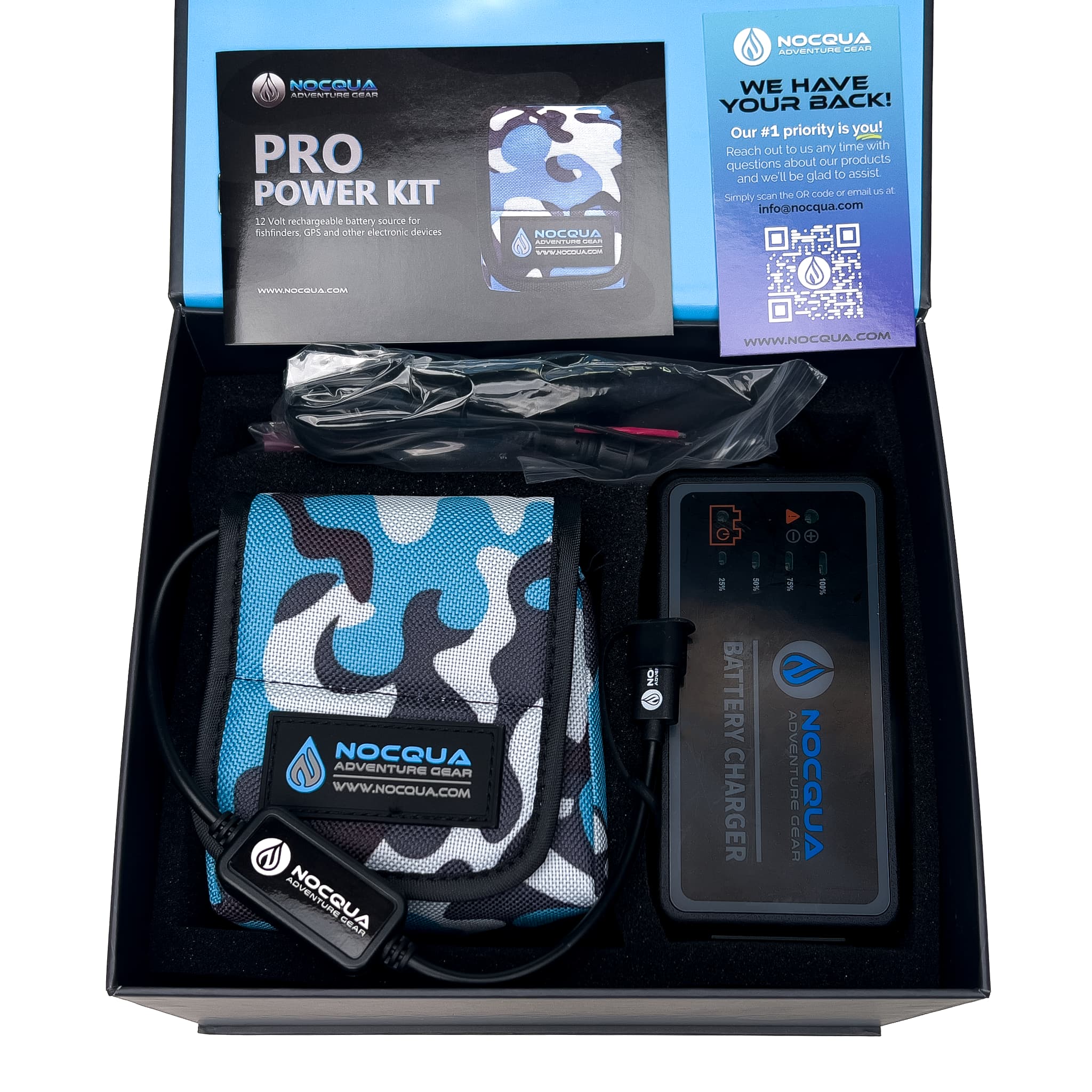

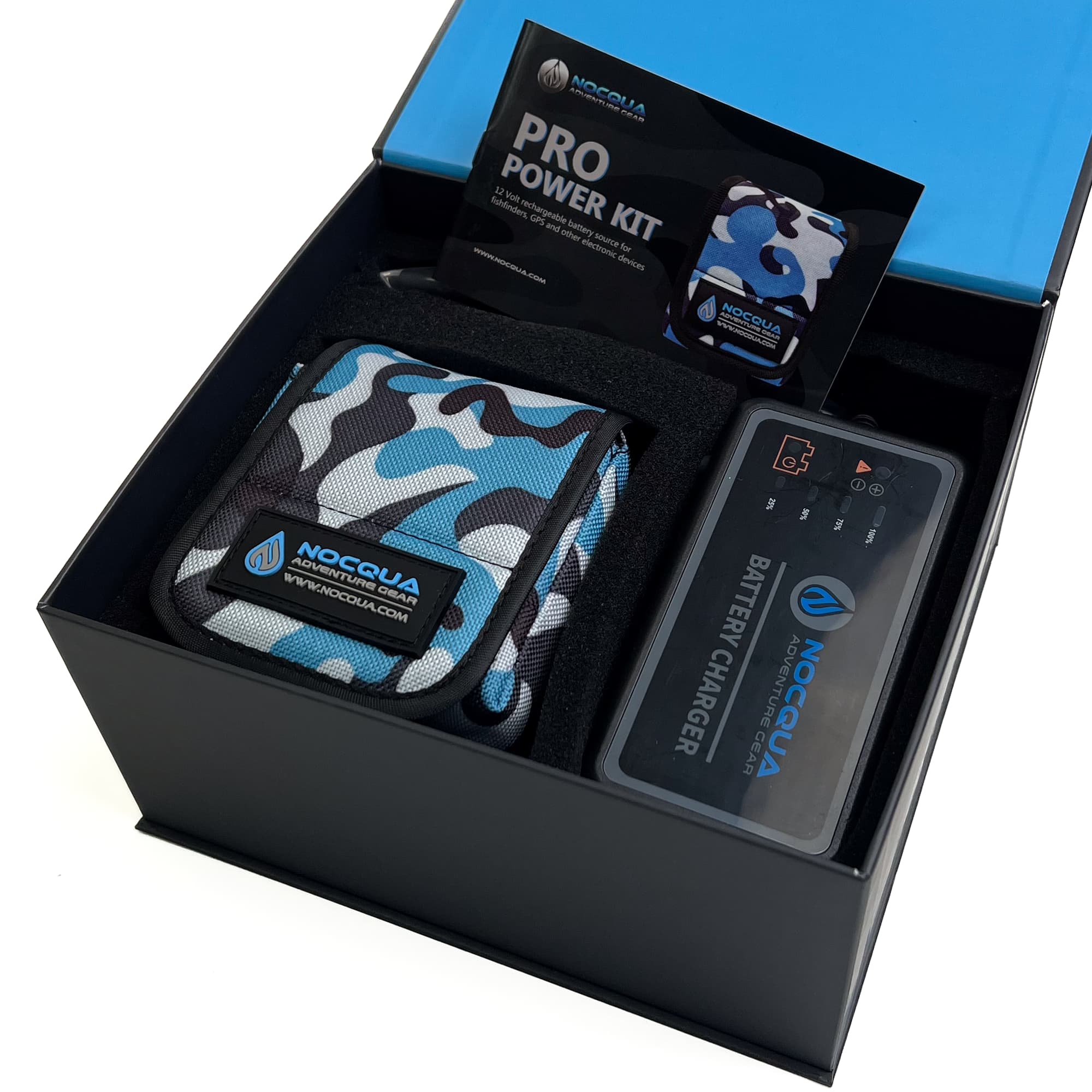

WHATS INCLUDED IN THE BOX

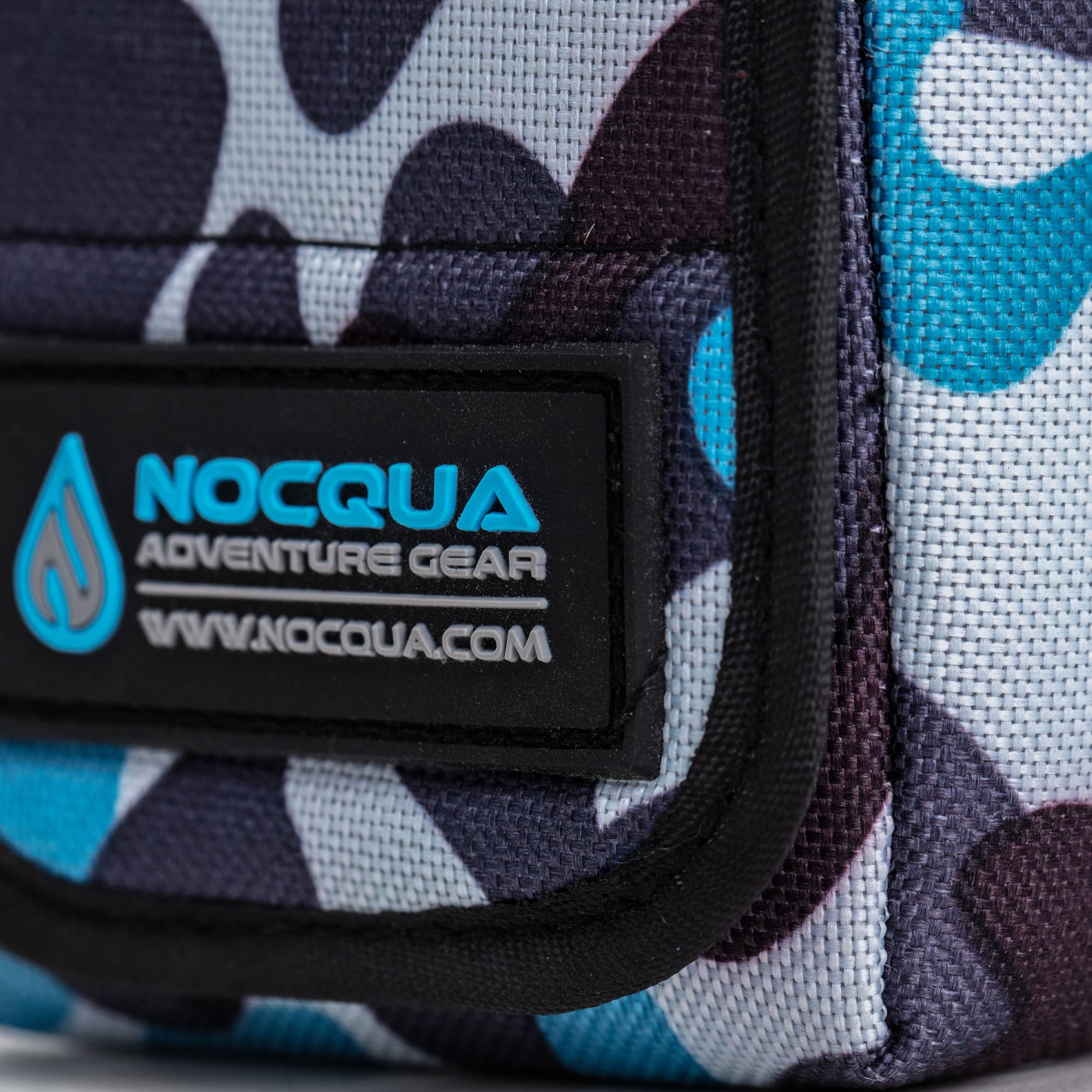

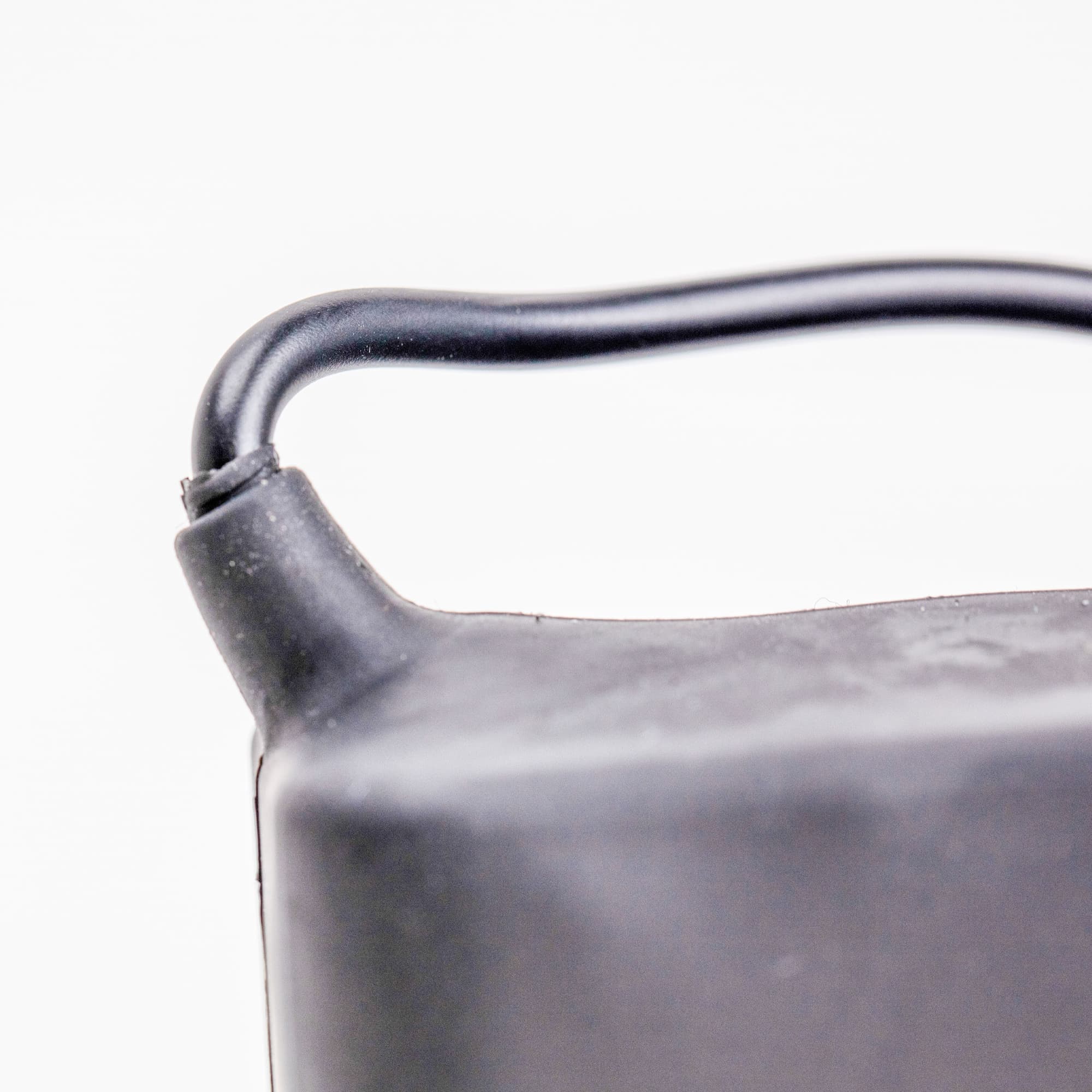

  • 1 x 12Volt 20Ah Nocqua Lithium Rechargeable battery, sealed in a silicone case, wrapped in a ballistic nylon sleeve.

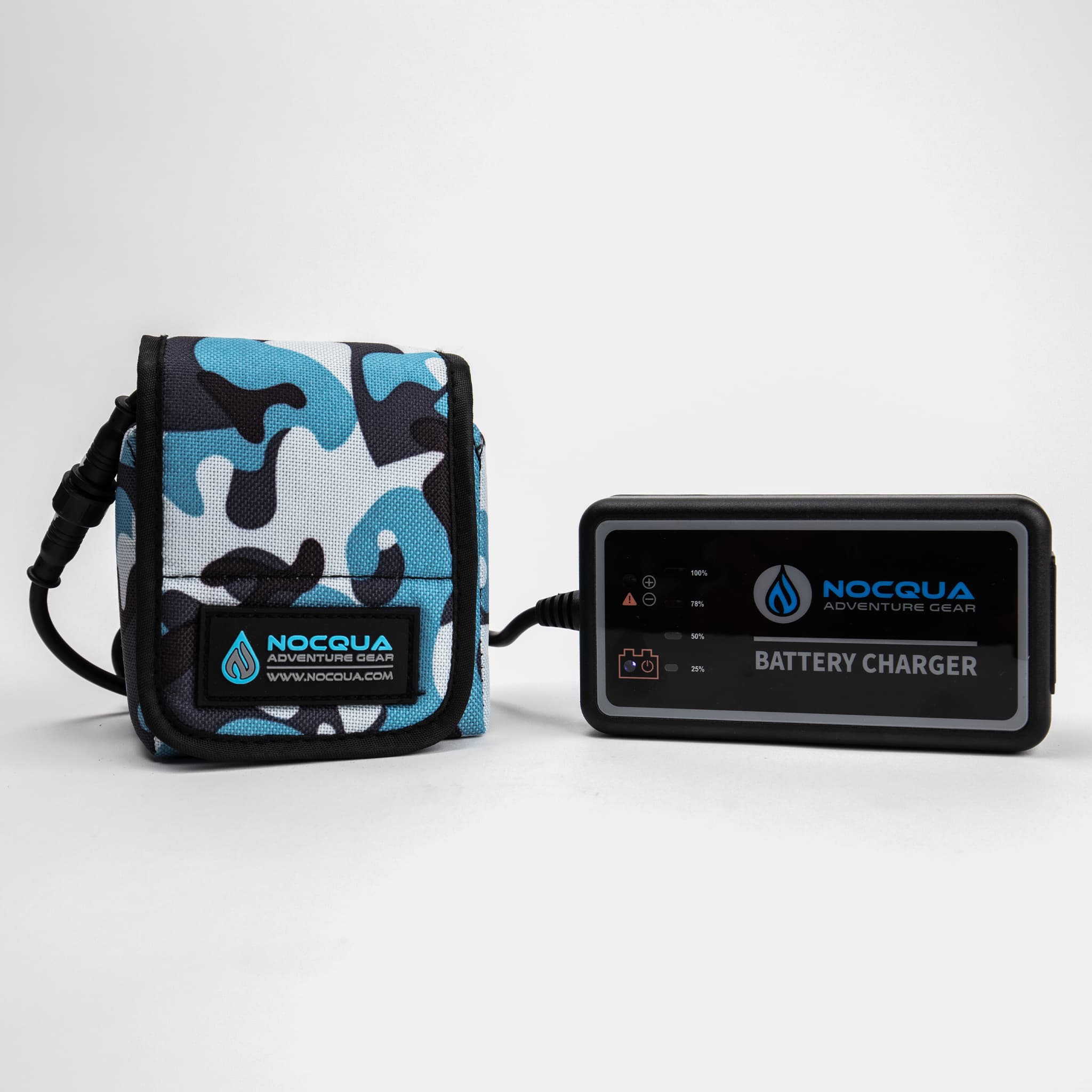

  • 1 x 5A Nocqua Pro Battery Charger with circuit board protection, overcharge protection and battery level indicator

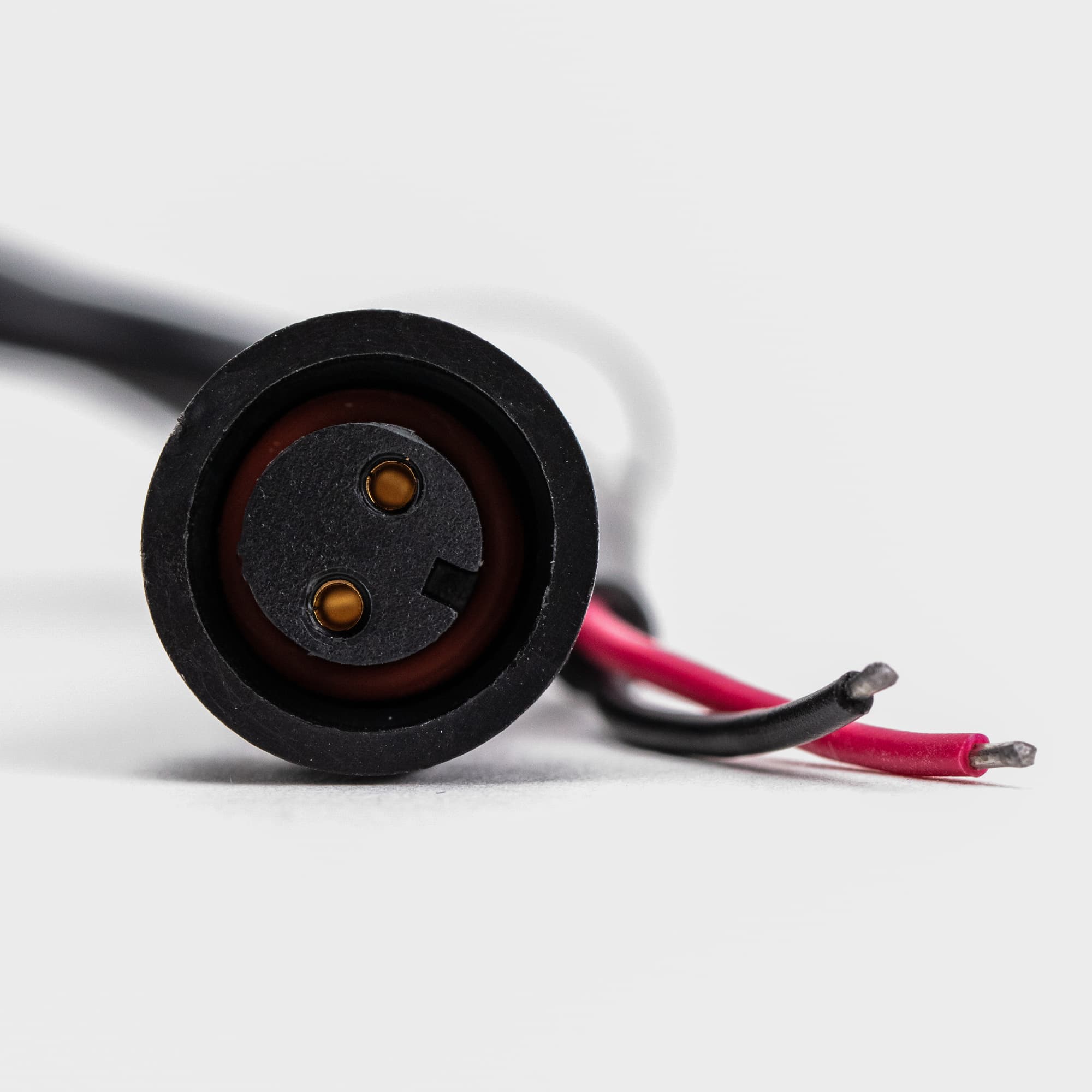

  • 1 x Universal Component Cable with Waterproof Connector and open leads

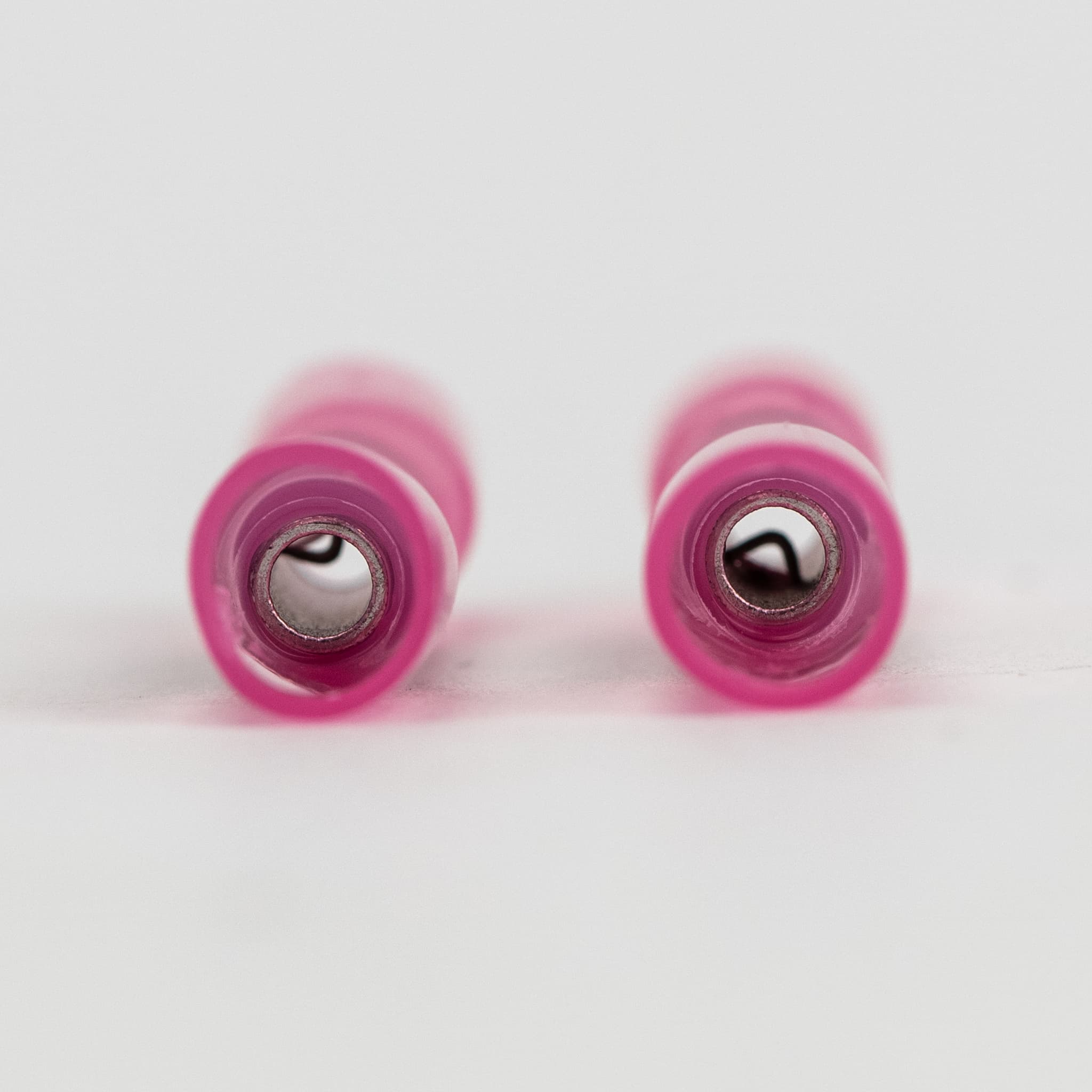

  • 2 x Heat Shrink Marine Grade Butt Connectors
  • 1 x 6” Heat Shrink Tubing
  • 1 x Instructional Booklet
  • 12 Month Limited Warranty
  • Awesome Customer Service
Add to Wishlist
Compare
SKU: 2121-1 Categories: ,

ABOUT THIS ITEM

  • STAY CONNECTED, NO MATTER WHERE YOU ARE: Compatible with Raymarine, Garmin, Lowrance, Humminbird, Action Sports Cameras, and more, our supercharged NOCQUA 20Ah Pro Power Kit is the ideal companion for any marine or outdoor adventure

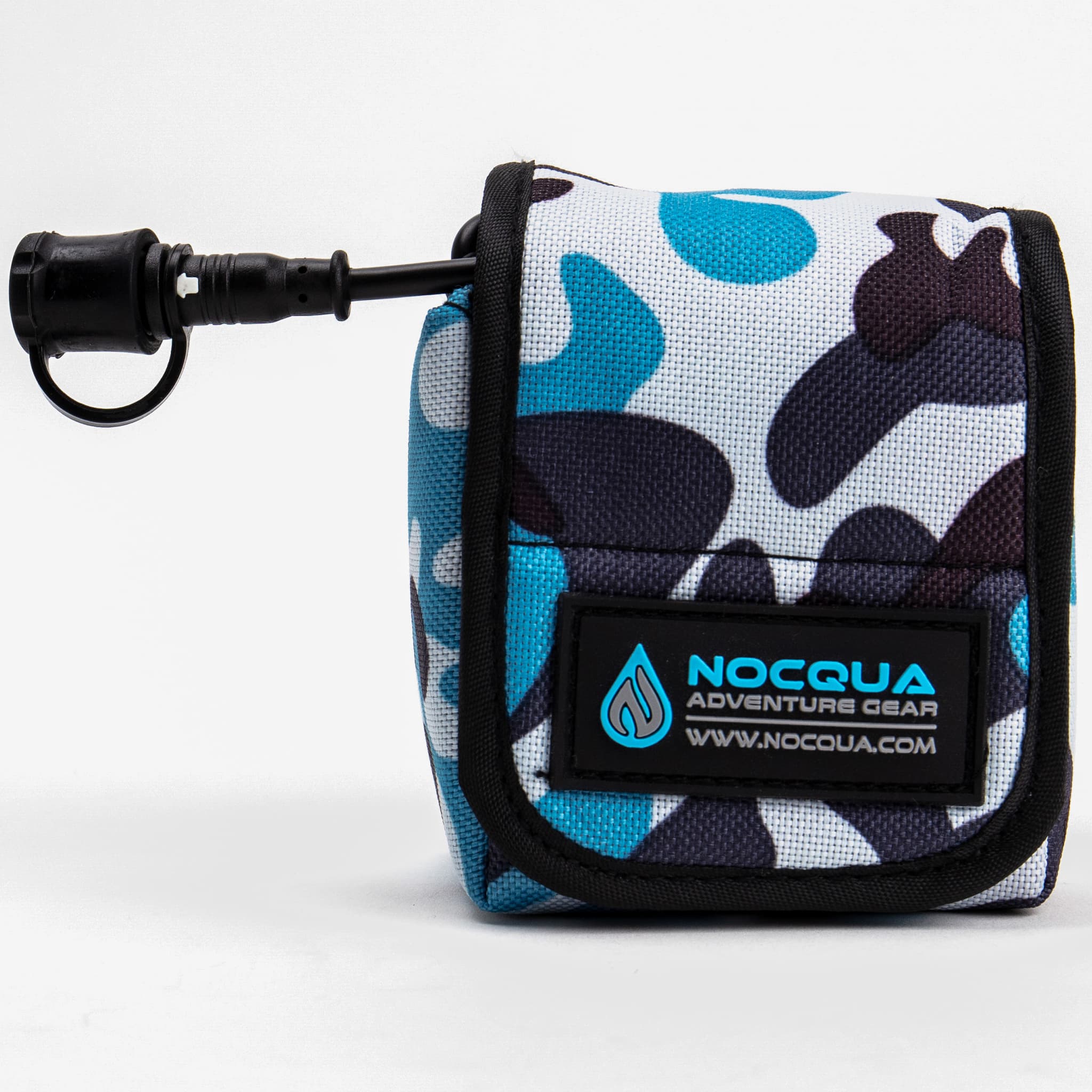

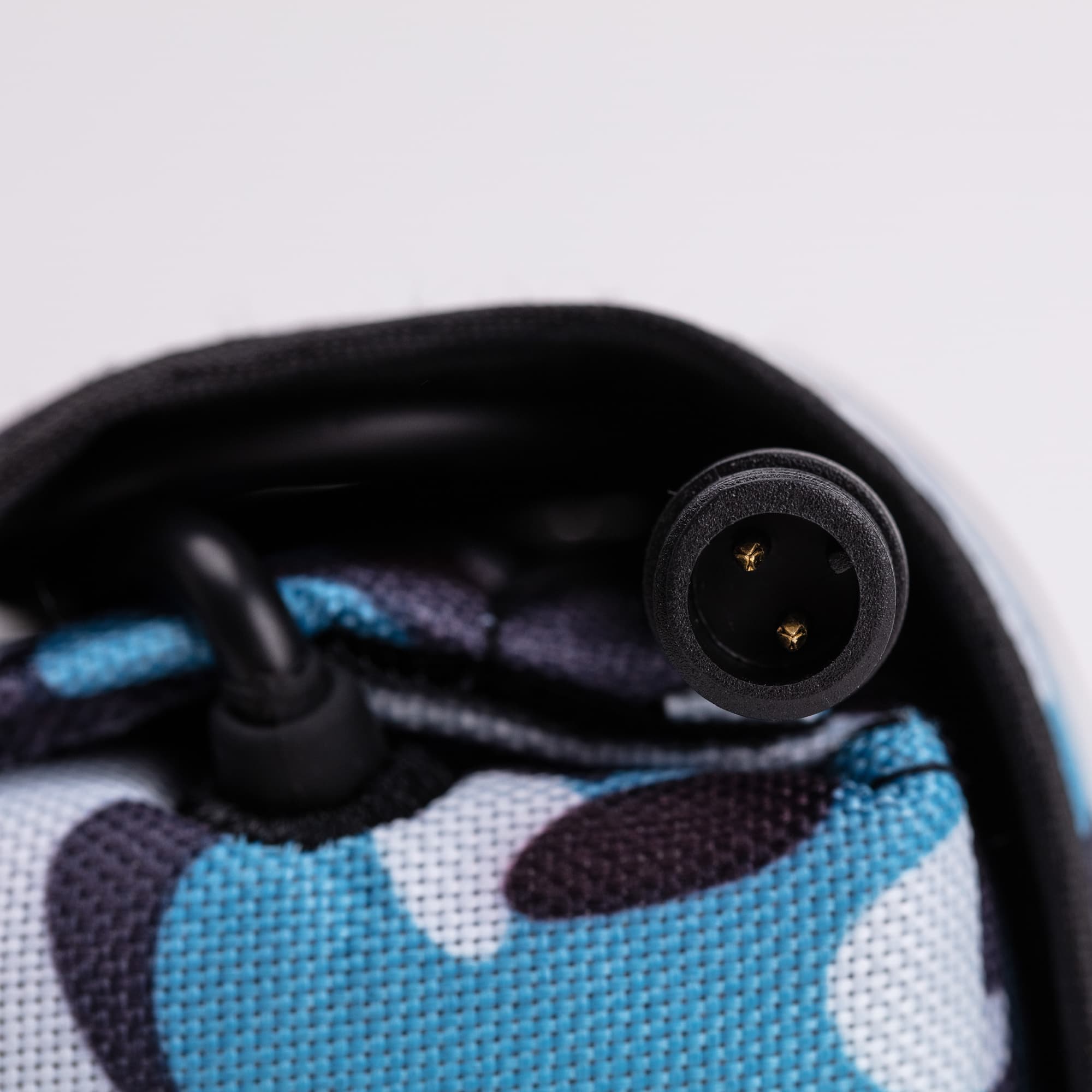

  • battery and water-tight connection port to make it completely water-resistant
  • LONG-LASTING, RECHARGEABLE BATTERY SOURCE: Powered by one 12V lithium-ion battery for long-lasting power, each charging kit includes a wall outlet charger for maximum versatility
  • SHORT CIRCUIT PROTECTION: Our charger automatically switches off in case of short circuit, high temperature, high voltage and deep discharge, and each kit comes with everything needed to power GPS units, Fish Finders and more

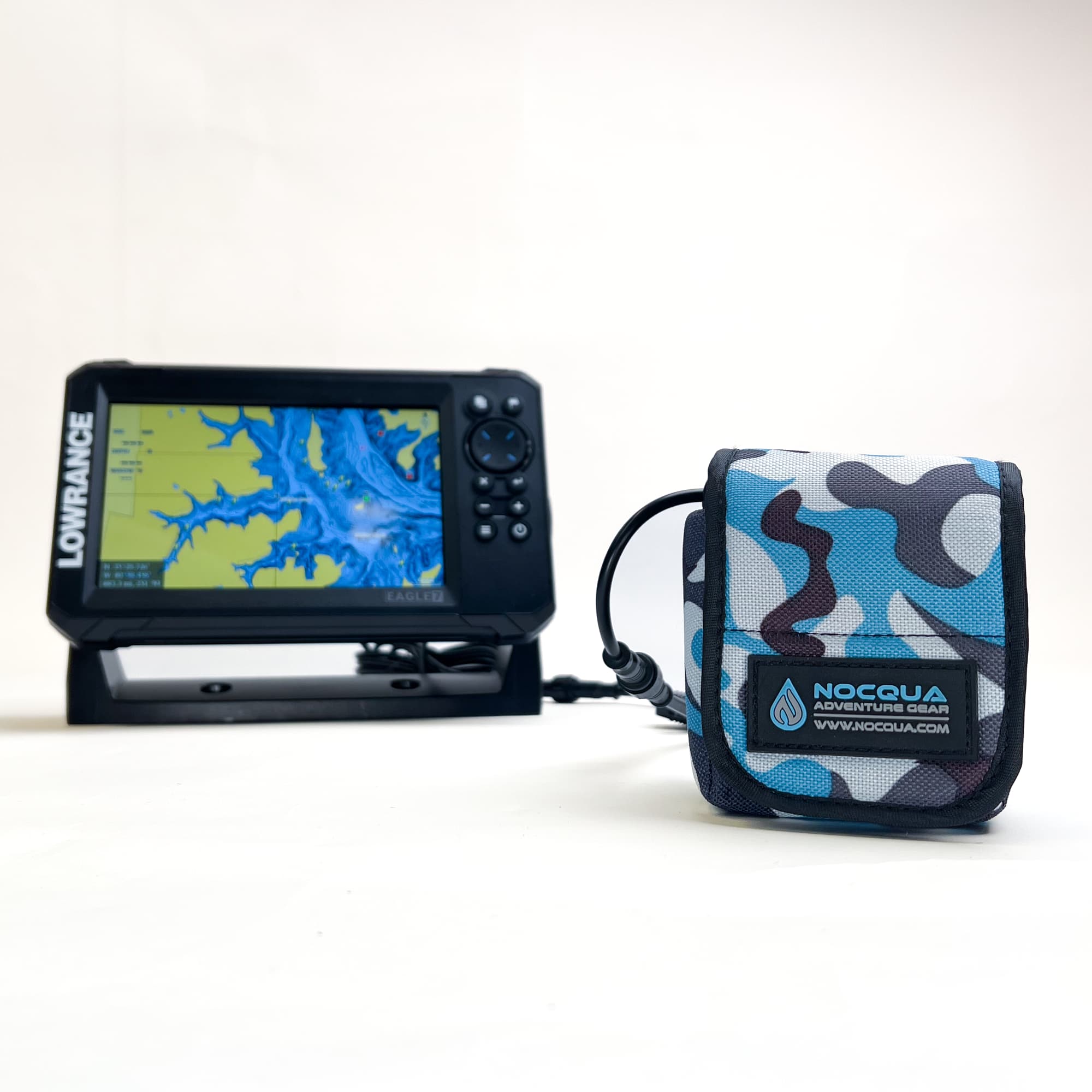

  • COMPACT AND PORTABLE DESIGN: No more lugging heavy equipment around on your fishing expeditions! Our 20Ah Pro Power Kit is a travel-friendly power source for your sounder, GPS, fish finder, or other outdoor electronic devices.

Installation

NOCQUA Pro Power Kit Installation Instructions

Before installation and use:

  1. Confirm component requirements are compatible with NOCQUA 12V battery.
  2. Ensure that the battery is fully charged before use.
  3. Make note of the positive (red) and negative (black) wire leads before beginning installation.

Subscribe to NOCQUA Adventure Gear on YouTube for Installation Videos and Instructions

Installation of heat shrink butt connectors:

  1. Strip outer protective black insulation to approximately 1”
    • a. Be careful not to strip wire leads.
  2. Strip the individual inside wire leads to approximately 1/4”.
  3. Repeat this process for the wiring of your electronic component device.
  4. Measure and cut heat shrink tubing to 3” or to your specifications to safely seal both butt connectors.
    • a. The tubing will be heated to seal the two butt connectors at the end of installation.
    • b. The remaining tubing is additional material and can be used for future projects.
  5. Slide measured piece of heat shrink tubing over the component wire leaving room to work.
  6. Slide a stripped Pro Power Kit wire lead into the crimp barrel of one butt connector.
  7. Slide the same color lead from the component wire into the opposite side of the butt connector.
    • a. Ensure that sufficient amount of the stripped wire is secured within the crimp barrel.
  8. Using a wire stripper or a standard set of pliers, compress the crimp barrel onto the exposed wire leads.
    • a. Confirm that the crimp holds for a tight fit before moving on to the next step.
  9. Heat the connector evenly from the center out to the ends until the tubing is fully recovered and secure – do not isolate the heat in one place for too long.
    • a. Do not hold the heat directly on tubing – continually move and turn.
  10. Let the connection cool before moving on to the next step.
  11. Redo Steps #5 through #10 for the remaining wire leads.

Installation of heat shrink tubing:

  1. Slide the heat shrink tubing over the two cooled butt connectors.
  2. Carefully push until centered so that there are no wire leads showing.
  3. Heat evenly from the center out to the ends until the tubing is fully recovered and secure – do not isolate heat too long in one place.
  4. Confirm that the connectors have held during installation.
  5. Power up your gear!

NOCQUA is not liable for damage to battery or equipment
